Bristol · Brazen · 9–13 November 2026

A modular physical home for Interactive Art

Aluminium-profile frame carrying reclaimed, upcycled computer monitor screens, Mac mini computers and visible infrastructure. Designed to retain a strong visual identity while allowing for variable configurations.

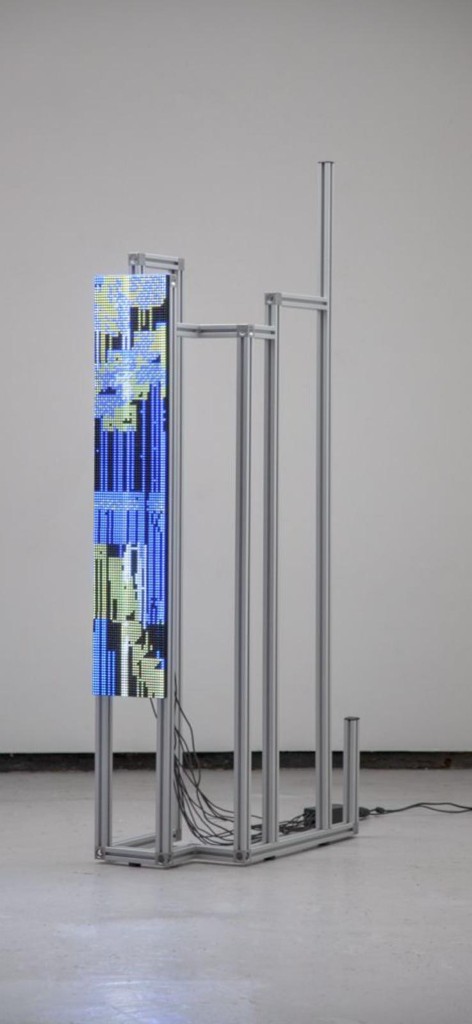

Tall stepped aluminium extrusion sculpture with a narrow illuminated display and visible cables
Primary structural reference: narrow base, stepped uprights, open negative space and visible cabling.

Frame Design

A stepped, L-shaped frame with screens facing three ways.

An irregular stepped base (about 1,300 × 500 mm) with eight 40×40 uprights of different heights, tied by top bridges and a low brace. Screens hang on short bars between uprights and can face the front, sides or back; only the bars move between layouts. Sizes in mm: uprights floor to top, screens floor to centre.

¾ view from the front right
Front elevation with a 1.75 m person height marked for scale
Side elevation from the right (audience on the left)
Back elevation: VESA plates, screen bars and cable runs
Top plan: blue arrows show which way each screen faces
Layout notes and screens

ScreenMonitorFacesCentre heightBottom – top edgeMounted onDriven by
Cut list
PartCut lengthQtyNotes
What each layout costs to build

Working estimates in GBP, including a 10% contingency. The total is only what you need to buy: the frame kit (profile and cutting, Light to standard profile, joints, fixings, levelling feet, VESA plates, ballast and delivery), the extra video cables and display adapters, and power. Screens and Mac minis are greyed out because you already have them (4 screens, 2 Mac minis, 3 cables); their buying prices are shown only for reference. Van hire and insurance are extra.

LayoutFrame kitCables and adaptersPower, PAT, tiesCastors (option)Total to buyScreens (owned)Mac minis (owned)

The £100 version

Four rescued screens screwed to reclaimed pallets.

Free pallets and timber offcuts replace the aluminium frame. VESA plates screw into timber battens, the two Mac minis sit on the pallet deck and the cables pool around them. Sizes in mm.

¾ view from the front right
Front elevation with a 1.75 m person height marked for scale
Side elevation from the right (audience on the left)
Back elevation: battens, VESA plates and the back screen
Top plan: blue arrows show which way each screen faces

ScreenMonitorFacesCentre heightMounted onDriven by

Shopping list

ItemQtyCostFree option / notes

Local donations and loans

Asking to borrow equipment is an easier yes than asking for a donation: no risk for the lender, and a good story to share. FLOCK becomes a new way to make interactive experiences from Bristol's unwanted tech.

Who to askWhat for
Bristol Waste Company and the Reuse ShopsScreens and TVs, with a built-in reuse story
BytebackRefurbished screens and mini PCs
UWE and University of Bristol IT teamsMonitors from office refreshes, plus AV stands
Local tech firms and coworking spacesOld monitors sitting in cupboards
Brazen and the venue AV teamStands, sandbags, extension leads and PAT testing

First steps

  1. Buy the two adapters and test all four screens with FLOCK on a table.
  2. Send the email to Bristol Waste, Byteback and the festival AV contact.
  3. Ask Brazen for a stand, sandbags and PAT testing.

Reference and alternate Ideas

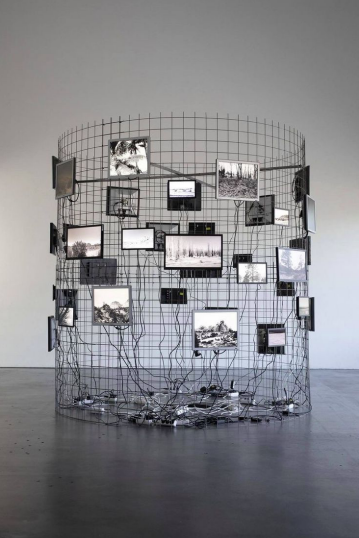

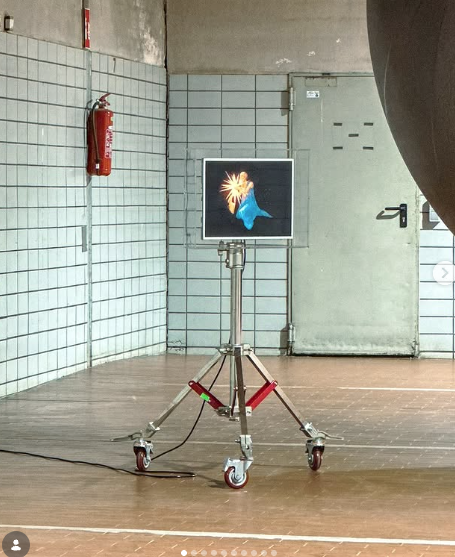

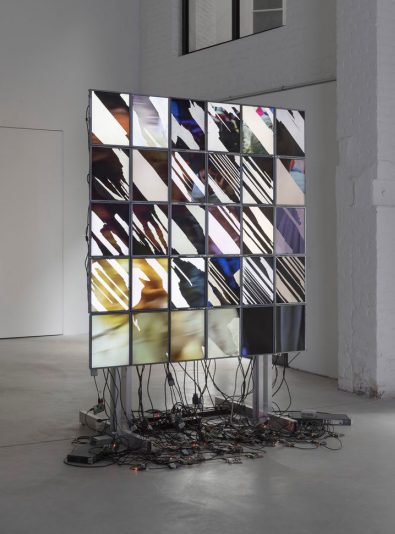

Installation References

Equipment already owned

Already ownedCoversGap to check
3 old computer monitors + 1 possible 32-inch TV4 screensCheck each input (VGA, DVI or HDMI) and whether the back has VESA screw holes
2 Mac minis4 screens, 2 eachConfirm the model in Apple menu → About This Mac. M4 models can drive 3 screens each
2 × HDMI-to-VGA cables, 1 × HDMI-to-HDMI cable3 connectionsEach Mac has one HDMI port, so its second screen needs a USB-C or Mini DisplayPort adapter. One more cable is needed

Where to source

Start locally, then order one complete profile ecosystem.

Bristol Waste Reuse Shops

Avonmouth and Hartcliffe Way. Electricals are PAT- and function-tested before sale; stock changes daily.

Byteback

Bristol IT recycler. Ask for six working mismatched screens as a donation, loan or materials partnership.

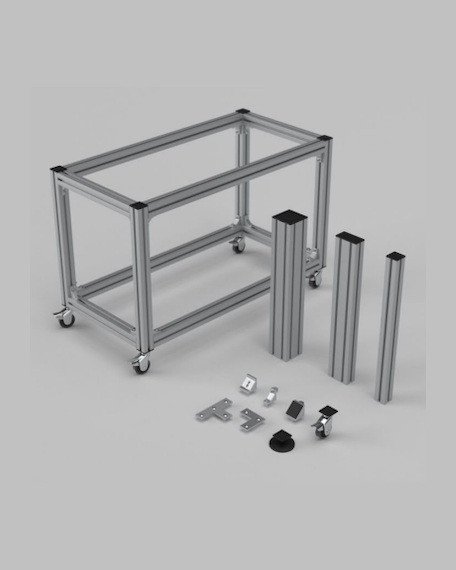

Valuframe Series 8

Published UK pricing, cut-to-length service and matching connectors. Standard 40×40 is £23/m ex VAT.

ITEM Line 8

The exact premium reference system. Use the Engineeringtool to create a BOM and request a UK quote.

ITEM VESA joint

Pivoting Line 8 VESA 75/100 joint for monitors weighing up to approximately 11 kg.

UK VESA adapter

Fixed 40×40 to VESA 75/100 plate listed at £20.80 ex VAT. Confirm stock and display mass.

Root Refurb

Refurbished Lenovo Tiny PCs from around £157.70 if Macs are not required.

Back Market

Refurbished Mac mini M1 machines from roughly £320; each supports two displays natively.

Re-Production

Bristol LED-wall hire, with 500 × 500 mm cabinets listed from £50 each per day.
